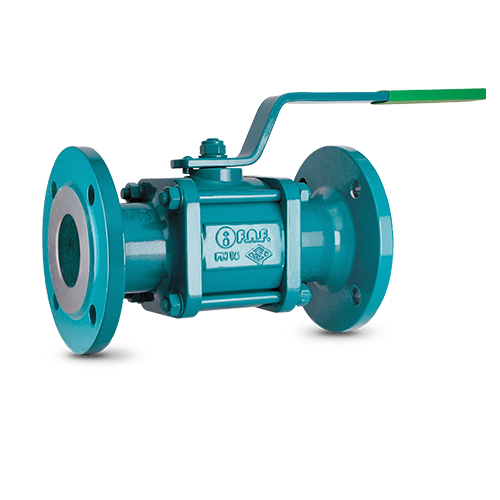

Ball Valve (Flanged — Cast Iron)
A flanged full-bore cast iron ball valve to EN 3148 / DIN 3357 for general industrial service. PTFE seats provide a reliable, low-torque shut-off with bi-directional sealing capability.
| Brand | FAF |
|---|---|
| Product Code | 1200 |
| Nominal Diameter | DN 15–200 |
| Nominal Pressure | PN 16 |
| Design Standard | EN 3148 / DIN 3357 |
| End Connection | Flanged EN 1092-2 / ISO 7005-2 |
| Body Material | GG25 Cast Iron |
| Operating Temperature | Up to +200 °C |
| Coating | Industrial Epoxy |
| Stem | AISI 420/304/316 |
| Seat/Spring | PTFE (Teflon) |
| Ball | AISI 420/430/304/316 |
