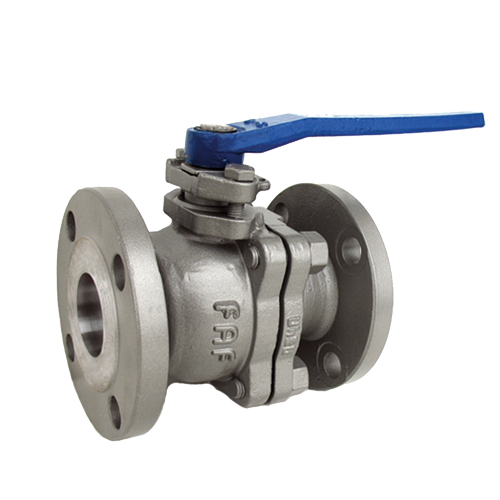

Ball Valve Floating (Flanged)
A floating ball valve designed for tank bottom applications where full flow isolation is critical. The floating ball design ensures reliable sealing across the wide DN15–250 size range for storage and food-grade service.
| Brand | FAF |
|---|---|
| Product Code | 1800 |
| Nominal Diameter | DN 15–250 |
| Nominal Pressure | PN 16 |
| Design Standard | EN 3148 / DIN 3357 |
| End Connection | Flanged EN 1092-2 / ISO 7005-2 |
| Body Material | GG25 Cast Iron |
| Operating Temperature | -30 °C to +200 °C |
| Coating | Industrial Epoxy |
| Stem | AISI 420/304/316 |
| Seat/Spring | PTFE (Teflon) |
| Ball | AISI 420/430/304/316 |
