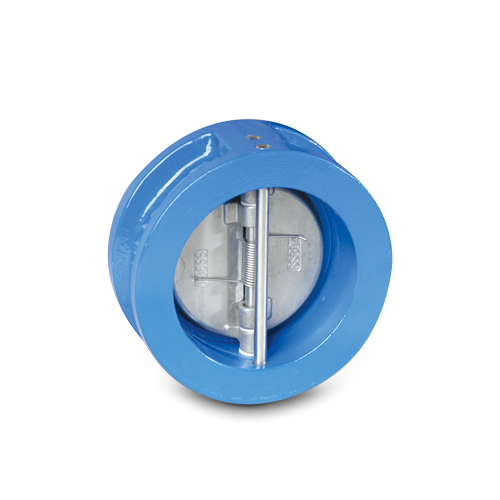

Dual Plate Check Valve
A dual plate (double door) wafer check valve featuring spring-assisted closing for low water-hammer operation. The compact wafer design fits between standard flanges, reducing installation space requirements
| Brand | FAF |
|---|---|
| Product Code | 2350 |
| Nominal Diameter | DN 40–300 |
| Nominal Pressure | PN 16 |
| Design Standard | EN 12334 / EN 17967 |
| End Connection | Wafer EN 1092-1 / ISO 7005-2 |
| Body Material | GG25 Cast Iron / GG50 Ductile Iron |
| Operating Temperature | Up to +130 °C |
| Seal | EPDM |
| Disc | AISI 304 |
| Coating | Electrostatic Powder Epoxy |
