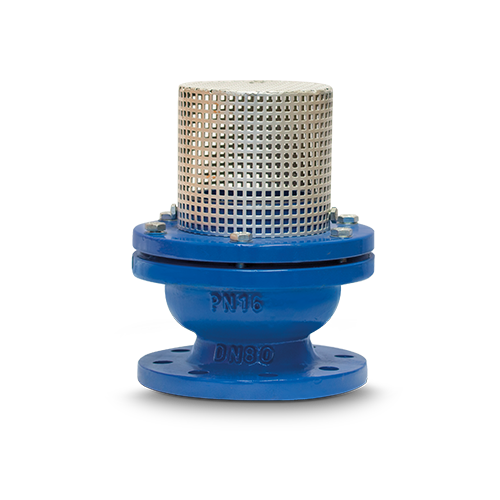

Foot Valve
A foot valve designed to maintain pump prime by preventing backflow in suction lines. Installed at the pump inlet submerged in the fluid source, ensuring continuous flow with minimal head loss.
| Brand | FAF |
|---|---|
| Product Code | 7200 |
| Nominal Diameter | DN 40–200 |
| Nominal Pressure | PN 16 |
| End Connection | Flanged EN 1092-2 / ISO 7005-2 |
| Body Material | GG25 Cast Iron / GG50 Ductile Iron |
| Operating Temperature | Up to +130 °C |
| Disc | GG25 Cast Iron / GG50 Ductile Iron |
| Stem | AISI 420/304/316 |
