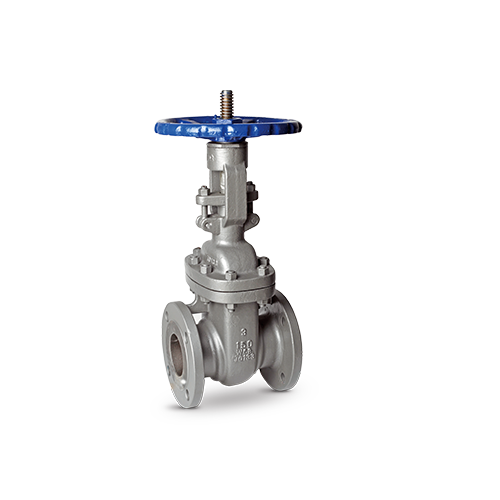

Gate Valve (Steel)
A cast steel gate valve engineered for demanding industrial and oil & gas service. Manufactured to API 600 / ASME B16.34, it provides bi-directional zero-leakage shut-off across a wide temperature range.
| Brand | FAF |
|---|---|
| Product Code | 6300 |
| Nominal Diameter | DN 50–200 |
| Nominal Pressure | PN 16 |
| Design Standard | API 600 / ASME B16.34 |
| End Connection | ASME B16.5 |
| Body Material | ASTM A-216 WCB Cast Steel |
| Operating Temperature | -30 °C to +200 °C |
| Seal | AISI 420/305/316 |
| Coating | Industrial Epoxy |
