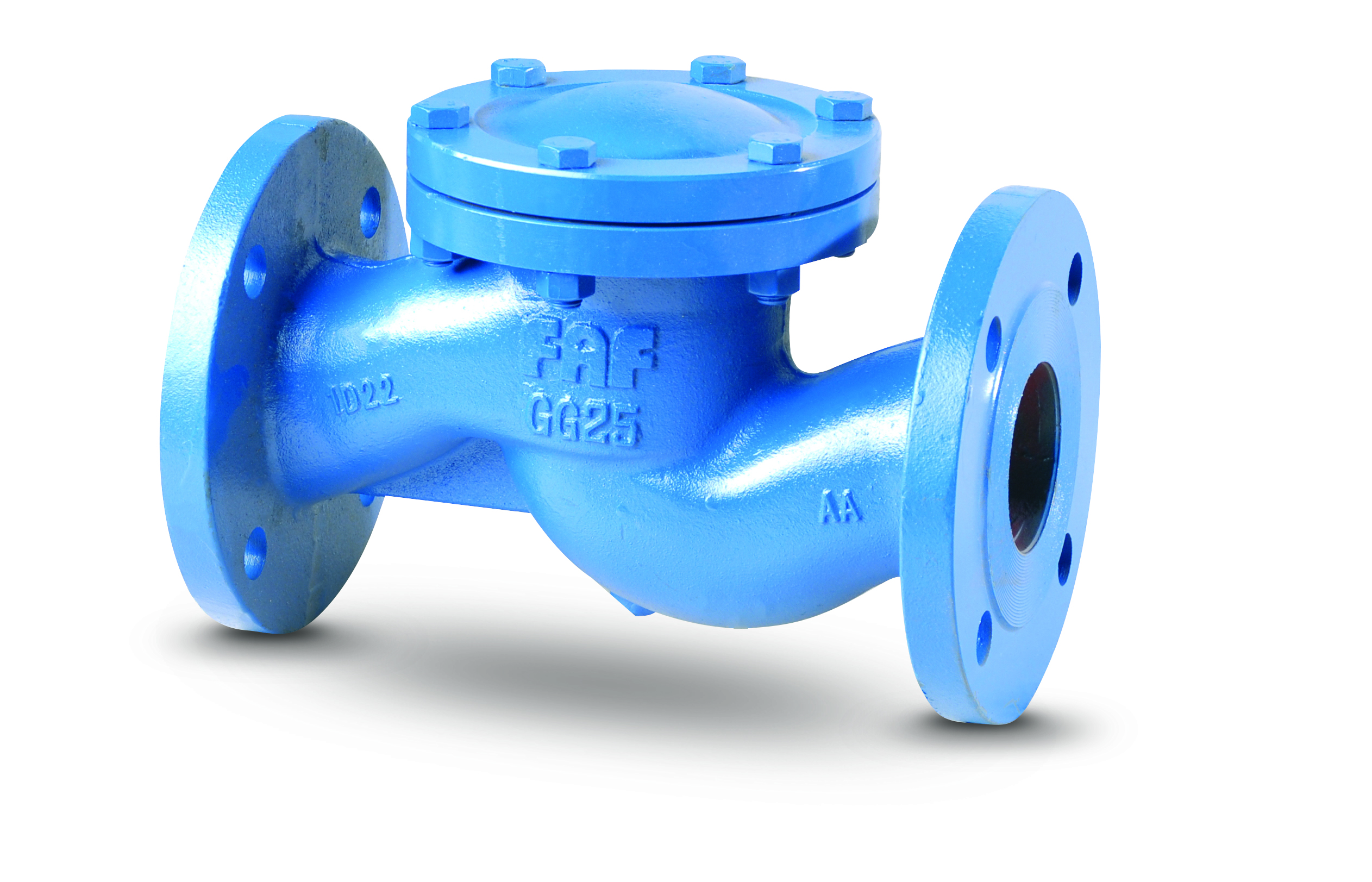

Lift Check Valve
A flanged lift check valve designed for steam and hightemperature water service up to 200 °C. The vertical lifting disc guided by the stem ensures low turbulence and reliable backflow prevention in high-pressure systems.
| Brand | FAF |
|---|---|
| Product Code | 2250 |
| Nominal Diameter | DN 40–200 |
| Nominal Pressure | PN 16 |
| Design Standard | EN 1234 / EN 16767 |
| End Connection | Flanged EN 1092-2 / ISO 7005-2 |
| Body Material | GGG25 Cast Iron |
| Operating Temperature | Up to +200 °C |
| Seal | Graphite |
| Disc | AISI 304 |
| Coating | Industrial Epoxy |
| Seat/Spring | Stainless Steel |
